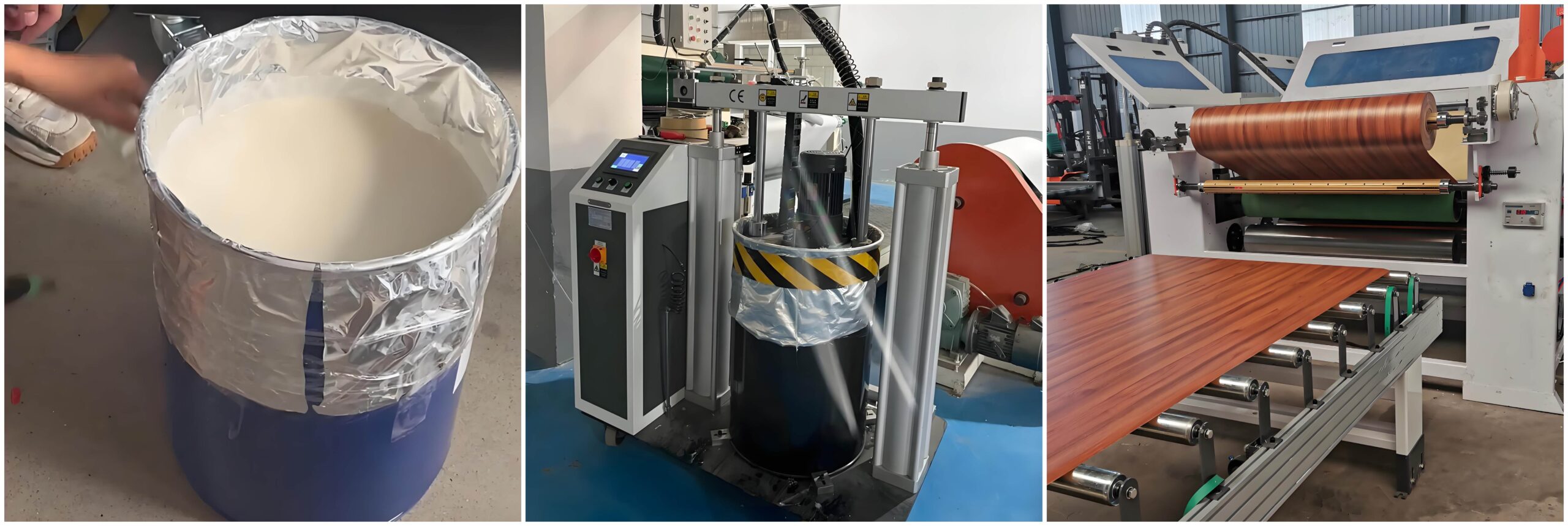

Pictures of on-site application of  PUR hot melt adhesive for flat lamination

Good initial adhesion, low glue coating, Strong bonding PUR hot melt adhesive

Excellent fluidity and wettability, high yield rate

Good high and low temperature resistance, aging resistance, solvent resistance

Suitable for bonding most boards, Eco-friendly PUR hot melt adhesive

How to use PUR flat lamination hot melt adhesive

1. Confirm the board（density board, melamine board, multi-layer board, solid wood board, Chevron board, wood plastic board, aluminum board, glass magnesium board etc.） and material (PVC film、PET film、PP film、Acrylic、Leather、Paper etc.) to be bonded, and ask the PUR flat lamination hot melt adhesive supplier to provide the appropriate glue.
2. Set the machine’s melt temperature, the pressure of the glue roller, the amount of glue applied, etc.
3. Let the board pass through the conveyor belt into the dust removal device to remove dust on the surface of the board.
4. Apply the PUR flat lamination hot melt adhesive evenly on the surface of the board, and then press the bonding material flatly on the board.
5. It is recommended to let the bonded board stand for more than 24 hours before proceeding to the next processing step.

Materials suitable for PUR flat lamination hot melt adhesive

(PVC film、PET film、PP film、Acrylic、Leather、Paper etc.)

PUR flat lamination hot melt adhesive application notes

1. The PVC film needs to be back-coated, the MDF surface needs to be flat and clean, and the plastic steel, wood plastic and acrylic boards need to be activated.
2. The recommended ambient temperature is 15-30℃. If it is lower than 10℃, heating equipment needs to be added.
3. The PUR flat lamination hot melt adhesive cannot come into contact with air or water vapor before use.
4. The glue port needs to be sealed when production is stopped. If the machine is shut down for more than 1 week, it is recommended to clean the hose and glue port.

Pur flat lamination hot melt adhesive FAQs

Q1. Why can’t the board and material be bonded together after using PUR flat lamination hot melt adhesive?

A1. a. The bonding was performed after the glue open time. b. The bonding pressure was insufficient. c. The board surface was overheated before bonding. d. The amount of glue applied was insufficient. e. The surface dyne value of the bonding material was lower than 38.

Q2. Why do wrinkles appear on the surface of the board after bonding with PUR flat lamination hot melt adhesive?

A2. a. Too much glue applied. b. The material to be bonded is too thin. c. The material to be bonded has too good tensile strength. d. The temperature of the sheet is too high. e. The material is overstretched before bonding.

Q3. Why does “bubbles” appear on the surface of the board after bonding with PUR flat lamination hot melt adhesive?

A3. a. The board is not flat and has impurities. b. The board temperature is too high. c. The initial adhesion of the glue is insufficient. d. The thickness of the bonding material is too thick. e. The amount of glue applied is insufficient. f. The bonding pressure is insufficient.

Q4.What are the types of pur flat lamination hot melt adhesive?

A4. According to the board material, it can be divided into MDF, melamine board, multi-layer board, solid wood board, Chevron board, wood-plastic board, aluminum board, glass magnesium board PUR flat laminating hot melt adhesive; according to the laminating material, it can be divided into PVC film, PET film, PP film, paper film, metal foil, acrylic, fireproof paper PUR flat laminating hot melt adhesive; according to the performance, it can be divided into high strength, Heat Resistant, Durable, Low-VOC, Eco-Friendly, Low Emission PUR flat laminating hot melt adhesive.

Where to buy pur flat lamination hot melt adhesive in China

Zhongshan Blue Rhino New Materials Co., Ltd. is a high-quality PUR laminating hot melt adhesive factory, manufacturer, exporter, and supplier in China. Over the years, with our familiarity with different laminating materials, we can provide factories or traders with purchased or customized PUR flat lamination hot melt adhesive solutions.

Why choose our pur flat lamination hot melt adhesive

1、With 20 years of experience in adhesive research and development, well-known PUR hot melt adhesive supplier for flat lamination in China, our technical engineers have a thorough understanding of bonding substrates and gluing processes, greatly improving your production efficiency.

2、In order to ensure the stable quality of the adhesive, all raw materials used come from international chemical giants, such as: LG Chem, Celanese, Dow Chemical, BASF, Sinopec

3、18 fully automatic intelligent glue production lines, well-known PUR hot melt adhesive manufacturer for flat lamination in China,with an annual output of more than 50,000 tons, and sufficient inventory to ensure that goods reach customers on time.

4、Our PUR hot melt adhesive supplier for flat lamination have SGS, VOC, ROHS, ISO9001 and other test reports to ensure that the glue is safe and environmentally friendly.

5、We have many years of experience in international logistics and transportation, and are familiar with sea shipping, land transportation, air transportation and other methods, so you don’t have to worry about glue transportation.
